Product Code: 2003
Floor to Seat Height (inches w/4″ Casters): 25
Commode Clearance (inches): N/A
Distance Between Arms (inches): 18
Maximum Weight Limit (pounds): 200
Product Dimensions (inches): 48”Hx22”Wx48”L
Product Weight (pounds): 45
Shipping Dimensions (L x W x H) (inches): 43.00 x 26.00 x 56.00
Shipping Weight (pounds): 60.00
Additional Key Dimensions
Outside Width: 23″
Inside Width BTA: 18″
Cradle Width: 16.5″
Seat Depth: 17″
Backrest Height: 27″
Overall Length: 48″
Position the chair near the patient.
Engage the brakes on all four casters.
Push the two lock buttons located at the side of the foot plate and remove for easier transfer.
Seat the patient in the chair and reattach the footplate.

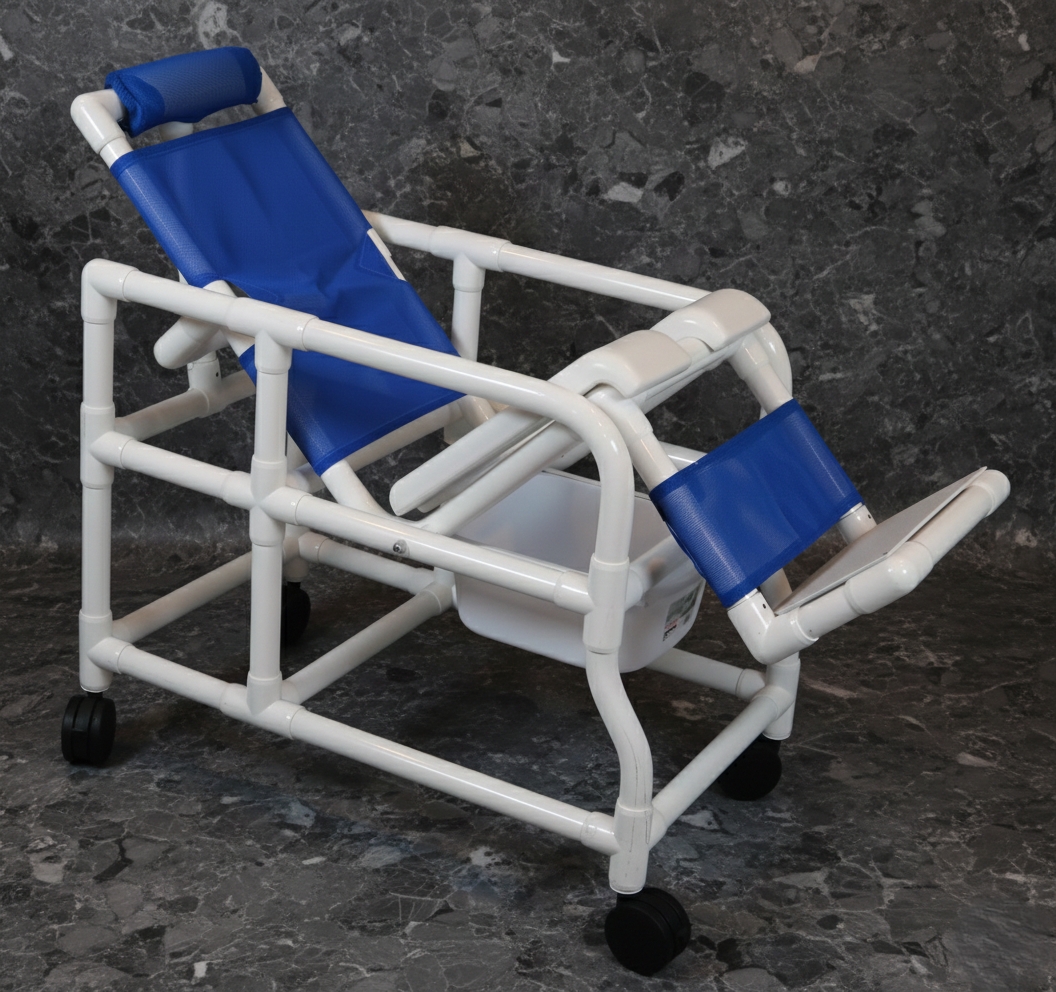

Adjust the chair to the desired angle by pulling the quick release pin located behind the backrest.
Disengage the brakes and move patient to the desired area.
Any questions Contact Us.
Never leave patient unattended.
Always apply all 4 brakes while transferring.
